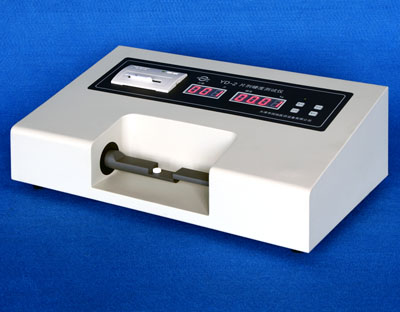

　YD-2 TABLET HARDNESS TESTER　　　　　　　　　　　　　　　　　　　　　 A SMALL MAP TO ENLARGE
     Tablet hardness testers are instruments for detecting breaking hardness of tablet.
     Applicable standards:
  • Industry  standard (Tablet hardness tester)
    •
         Features:
  • The tablet is loaded artificially and pressed automatically.
  • There is high accuracy press sensor and hardness data is displayed on LED.
  • It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
  • Time of testing will be saved by directly measuring the diameter.
  • Test data is displayed and locked automatically, so can test be reset and cycled.
  • It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
  • The parameters can be preset at any time. Either preset or real data is displayed on the LED.
  • Automation: auto-test, auto-diagnose, auto-alarm.
    •
         Specifications:
  • Hardness range (2～199.9)N
  • Hardness accuracy ±1.5%
  • Probe procession range (3～40)mm
  • Test period ≯20S/P
  • Max number in each group 100P
  • Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
  • Dimension (500*300*160)mm3
    •
    SERIES
    YD-1
    YD-2
    YD-3
